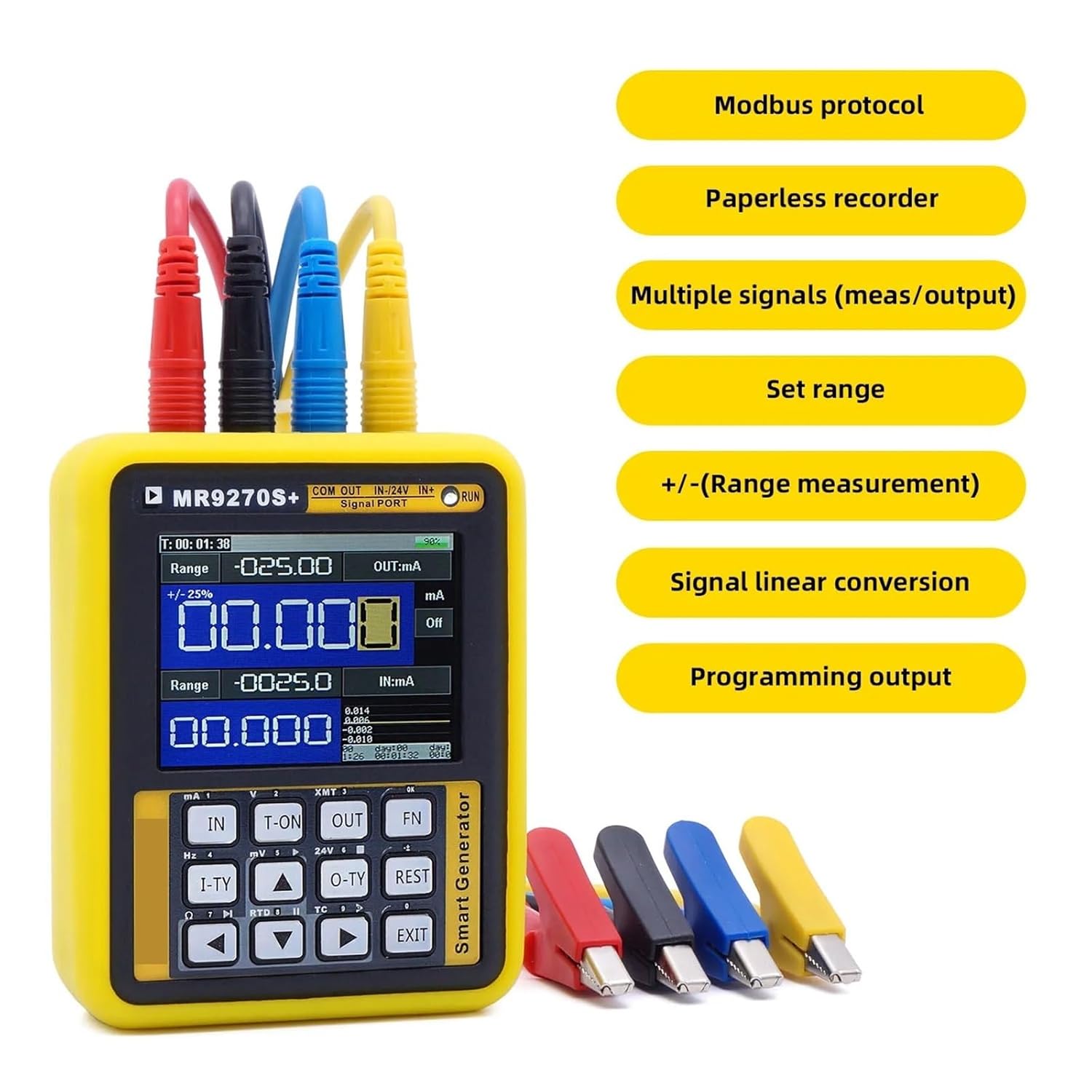

MR9270S+,4-20MA Signal Generator Calibrate Current Voltage PT100 Thermocouple Pressure Transmitter Logger PID Frequency Handheld(EU)

Digital Signal Processors1. HART has enhanced data parsing, which may not be able to communicate and is now functioning normally2. MODBUS master site variable reading BUG3. MODBUS custom slave sometimes cannot communicateVersion 4 (D) solves the problem of not saving the signal type set for shutdown(Friends who need to upgrade firmware can leave your email address in the chat window. Please note that this firmware corresponds to models after 2019.)The MR9270 series will have irregular firmware updates. Friends who need to upgrade the Product Description:The MR9270S+ multifunctional signal generator adopts a high-speed ARM CPU, with strong performance, stable operation, and user-friendly interface.The MR9270S+ multifunctional signal generator adopts a nylon shell, a silicone button with backlight, and a high transmittance tempered mirror surface.MR9270S+ multifunctional signal generator, capable of simultaneously measuring and outputting signals (current, voltage, MV, frequency, resistance, thermocouple, thermal resistance, PT100)MR9270S+multifunctional signal generator, MODBUS protocol, paperless recorder, signal conversion, real-time curve, programming output and other functions.Features:1. Simultaneously measure and output signals.2. The current and voltage signals can be programmed for output, with two output modes.The first mode: Set the starting point, ending point, and number of cycles to start working.The second mode: advanced mode, where signal changes are all set by parameters.3. Pre set values: 9 sets of commonly used signal values can be preset for fast output.4. Convert the input signal into an output signal, for example: convert the input frequency signal into a current signal, and convert the input range from 0-1000Hz to 4-20mA.5. Real time curve: The change trend of input and output signals can be displayed through a curve, the collection time of the curve can be set, and the curve can be automatically displayed within a certain time range of maximum and minimum values.6. Conversion of engineering quantity display: The signal is displayed as a signal value or engineering quantity, and the signal value corresponds linearly to the engineering quantity. For example, a 4-20mA signal corresponds to 0-100, that is, 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100. This range can be modified through parameters.7. Modbus RTU remote control: It can communicate with configuration software or through RS485 to achieve online setting of instrument output signals and monitoring of instrument input signals.8. Modbus RTU master station: Conduct communication testing, parameter setting, parameter copying, online monitoring, and other operations on slave devices with RS485 MODBUS interface.9. Modbus Rtu custom slave station: can simulate all types of variables of modbus devices for configuration software or debugging10. Instrument Toolset: As a functional extension of the instrument, such as a simple paperless recorder, PID controller, etc. Please pay attention to the product website for details, and this manual is not provided for description.11. USB firmware upgrade: Upgrade firmware to expand features.12. USB to Rs485: The instrument can be used as a USB to RS485 virtual serial port, and operating systems below WIN10 require the installation of drivers.Parameter:1. Built in 3.6V 2500mA polymer lithium battery; The standby time is about 20 hours; The usage time varies depending on the usage situation (20mA continuous output can 8-10 hours)2. Working environment: 0 ° C-50 ° C.3. Internal reverse and overcurrent protection; Protection voltage: 30V4. Size: 97mm * 76mm * 33mm5. Weight: 189 gramsPacking list1 x certificate1 x Kit (black)1 x manual1 x RS485 adapter1 x USB cable1 xCharger (random black and white colors)1 x 10A / 4mm test fixture (yellow)1 x 10A / 4mm test fixture (blue)1 x 10A / 4mm test fixture (red)1 x 10A / 4mm test fixture (black)1 x MR9270S + signal generator==========Battery Included : YesHigh-concerned chemical : NoneModel Number : MR9270S+(D)Display Size : 2.9 Inches & UnderDIY Supplies : ElectricalCertification : The net weight of bare machine is about : 150gBare machine size : 92*72*30(mm)/3.6*2.8*1.2(in)
