DC 12V/24V 8CH DIP Switch Set Parameters RS485 Relay Board Modbus RTU PLC Remote IO Module RYR408B C35 DIN Box(DC 12V with DIN Box)

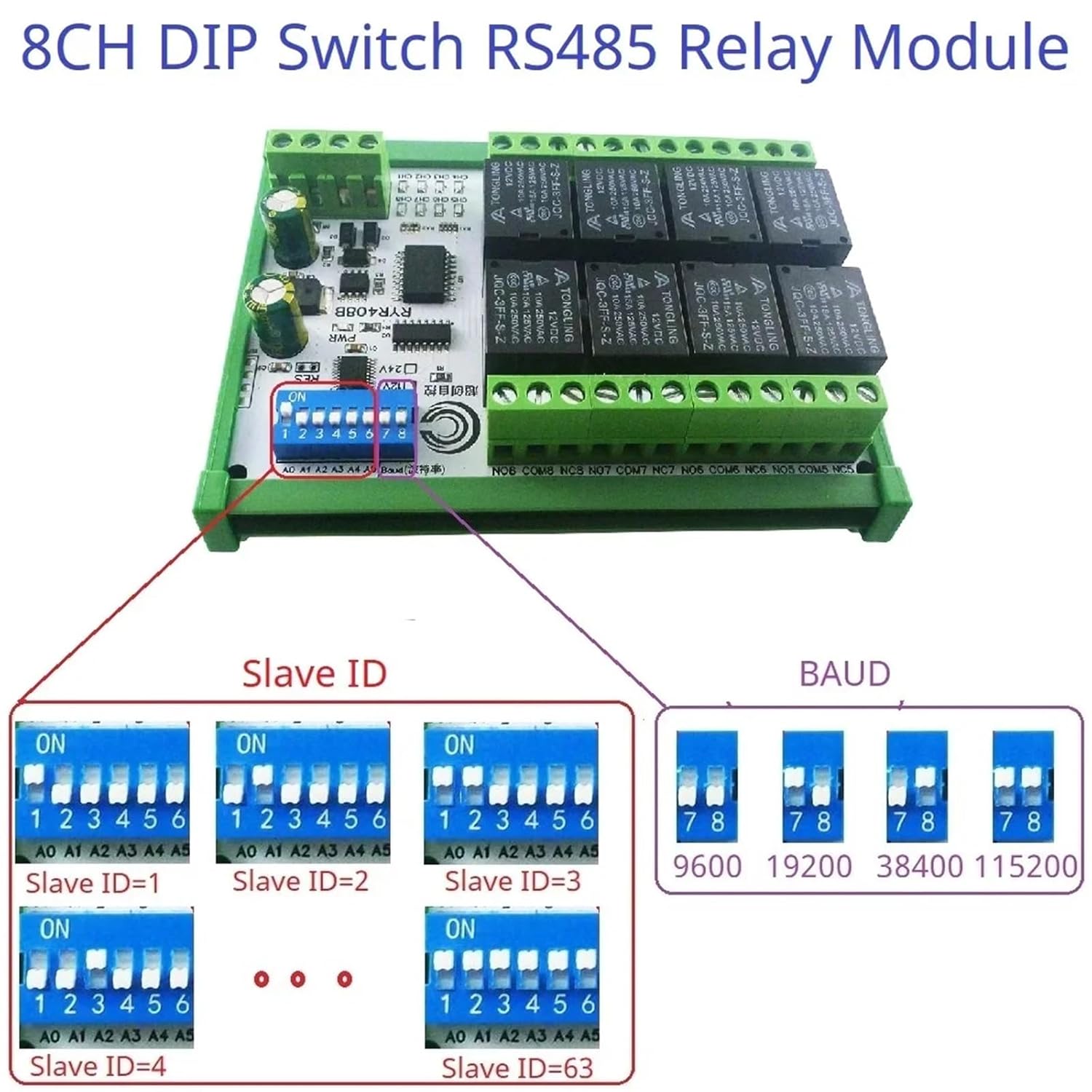

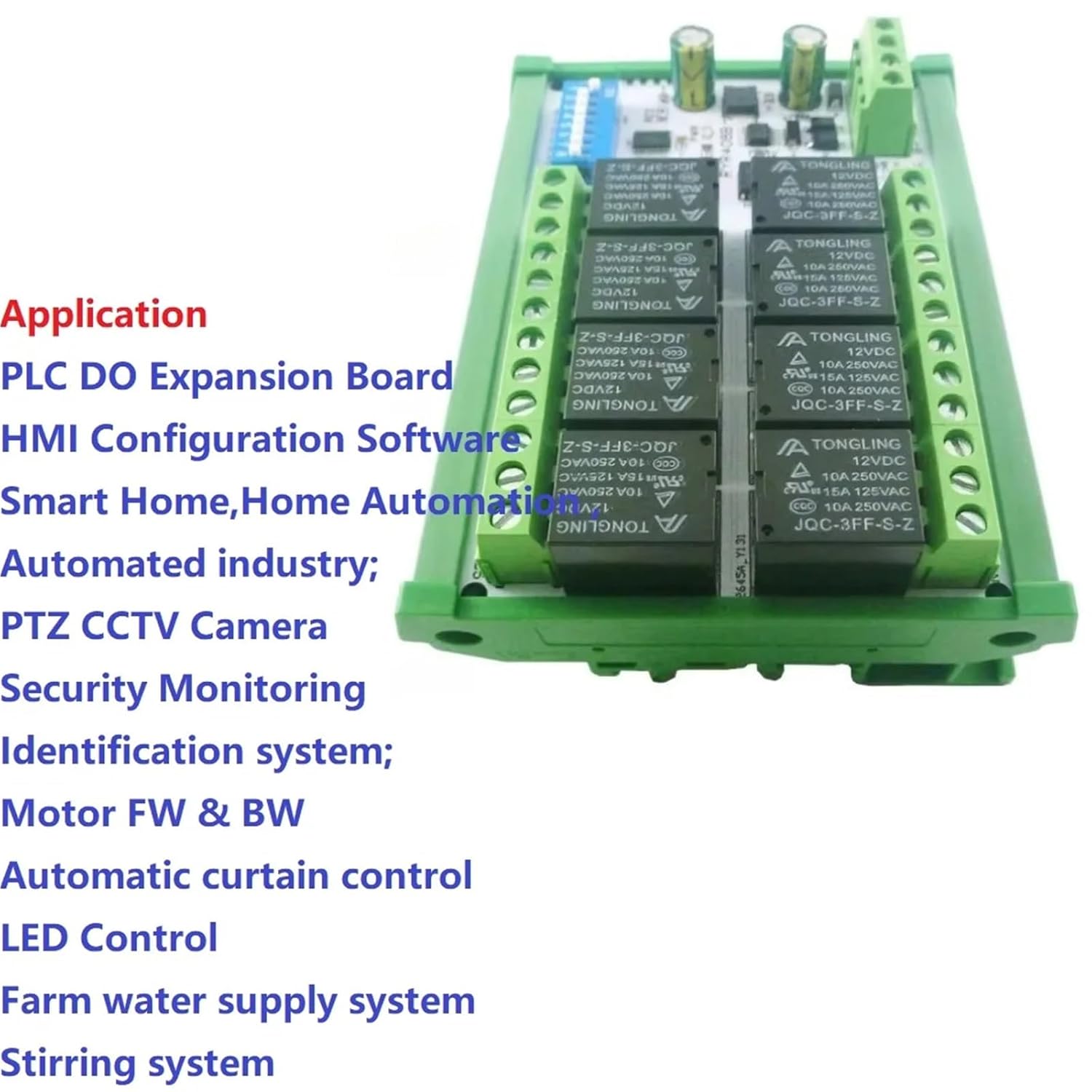

Packing list:1 PCS RYR408B Only Board or With DIN BOX (select the version you need)Description:1: Working Voltage DC 12V/24V;2: Standby current (all relays closed) 5.5MA, 1 relay open 30MA, ...,4 relay open 235MA3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands4: MODBUS RTU command, Write 05/06/15/16, Read 01/035: Under the ''Delay'' command ,the maximum delay is 255 seconds;6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;7 Set the Slave ID through the DIP Switch: 1-63 ID8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS9 Parity :None(Default)/Even/Odd10 Size : 108*72*18MM(Only Board);112*82*38MM(With DIN Box);11 Weight : 129g(Only Board),210g(With DIN Box)12 Maximum load: 10A 250VAC;15A 125VAC;10A 28VDCFor more information, please contact meApplicationPLC DO Expansion BoardHMI Configuration SoftwareSmart Home,Home Automation ,Automated industry;PTZ CCTV CameraSecurity MonitoringIdentification system;Motor FW & BWAutomatic curtain controlLED ControlFarm water supply systemStirring system

• 1: Working Voltage DC 12V/24V;
• 2: Standby current (all relays closed) 5.5MA, 1 relay open 30MA, ...,4 relay open 235MA
• 3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
• 4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
• 5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
