Adjustable Voltage Surge Protector 110VAC 120VAC, 2 LED Displays, Overvoltage and Undervoltage Current Limit Relay, Smart Circuit Breaker AC Disconnect, 40A with DIN Rail Mount
4.9 (76 items)
Limited Time Sale$11.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220065511 | Release Date | 2026/05/03 | List Price | $7.60 | Model Number | 220065511 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Home usage over or under and current protection: It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment.
- Automatic recovery connecting: Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the protector can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal.

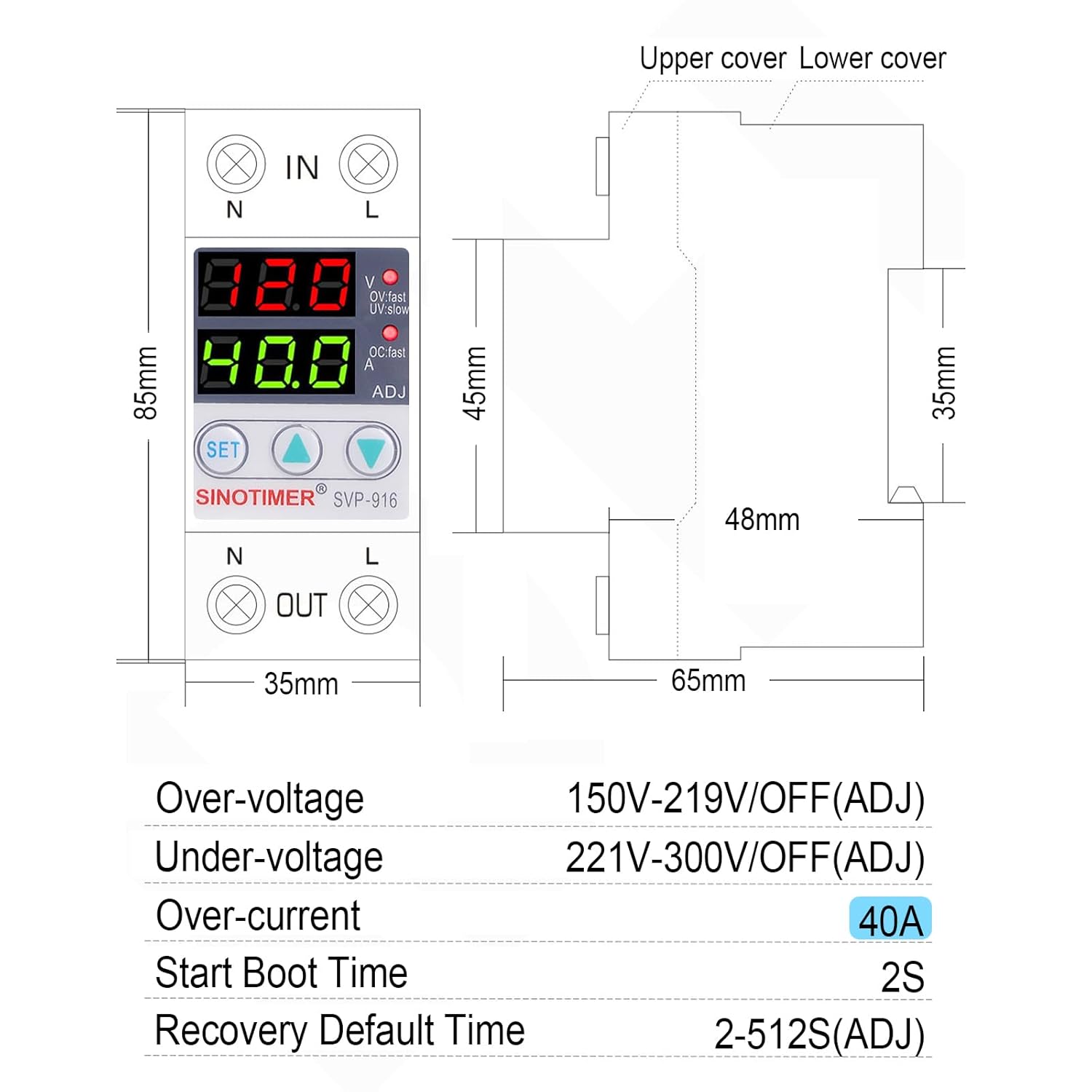

- Double LED display: SVP916 protector can display actual measured voltage and current. Protectors are available in 40A, 63A and 80A resistive load, not the same current load, depending on each customer's actual use needs.
- Adjustable voltage current protector and reconnecting time: Overvoltage value, undervoltage value, overcurrent protection and fault recovery delay time are adjustable.
- Precautions for use: Please pay attention to the maximum protection current value of the protector, the zero line N of the protector is directly connected, and there is no disconnection function. When the undervoltage breaking time is greater than 0.3 seconds, the voltage protector will not open after power failure.
| Model | SINOTIMER |
|---|---|
| Wattage | 6 watts |
| Brand Name | SINOTIMER |
| Unit Count | 1.0 Count |
| Part Number | XY-XD |
| Coil Voltage | 120 Volts (AC) |
| Contact Type | Normally Open |
| Manufacturer | SINOTIMER |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 40 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Contact Current Rating | 40 Amps |
